What a Shift-On-The-Fly Switch Actually Does
A shift-on-the-fly switch — SOTF, sometimes called a DSP5 switch on Duramax or a multi-position switch on Powerstroke — is a rotary knob mounted in your cab that lets you switch between multiple engine tunes without pulling out a programmer, plugging into the OBD-II port, or stopping the truck.
Here’s how it works under the hood. When you have your truck tuned with EFILive, EZ Lynk, HP Tuners, or SCT, the tuner can load multiple calibrations into the ECM at once — typically five. Each calibration has its own fueling table, injection timing, boost target, and torque management settings. The SOTF switch is wired directly into your truck’s electronic nervous system. On an LML Duramax, the switch pins directly into the factory E86 ECM — yellow wire to pin 11, black wire to pin 35 — using a built-in resistor ladder to alter voltage on a 5-volt reference circuit. On a 6.7L Powerstroke, the switch taps inline into the fuel temperature sensor harness, intercepting and adjusting the sensor’s return voltage feedback before it reaches the ECM. The custom-tuned ECM reads these tailored voltage signals, identifies exactly which knob position you’ve clicked, and instantly hot-swaps the underlying fueling, timing, and boost calibration tables.
The result: you’re cruising on the highway in a fuel-efficient tow tune, merge onto an empty stretch of road, click the knob two positions up, and the truck is suddenly running an additional 120 horsepower with more aggressive fueling and higher boost. No laptop, no reflash, no downtime. The switch happens as fast as you can turn your wrist.
A quality SOTF switch installs cleanly — in a blank switch panel on the dash, in the cubby below the HVAC controls, or in a custom bracket that looks factory. The wiring runs through the firewall to the ECM connector, where it terminates at the specific pins your tuning platform uses. The whole install takes an afternoon with basic hand tools and a wiring diagram.
The LML Duramax 5-Position SOTF Switch
The 2011-2016 LML Duramax is the most popular platform for SOTF switching, and there’s a reason for that. The LML responds dramatically to tuning — a stock LML makes 397 horsepower and 765 pound-feet. A tuned LML on a moderate performance calibration can push past 500 horsepower without touching the hard parts. The spread between a fuel-efficient daily driver tune and a max-effort performance tune on the same truck is enormous, and that’s exactly what a 5-position switch lets you exploit.
How the LML SOTF Wiring Works
On the LML Duramax, the SOTF switch connects to two pins on the ECM’s X1 connector — pin 11 (yellow wire) and pin 35 (black wire). The switch uses a resistor ladder: each position routes the signal through a different resistor value, and the ECM reads the voltage drop to determine which tune to load.
Position 1 is typically the stock or near-stock calibration. Position 2 is a tow tune — moderate power increase with conservative EGT limits. Position 3 is a street performance tune with more fueling and quicker turbo response. Position 4 is a performance tune for spirited driving. Position 5 is the max-effort calibration, which usually requires supporting modifications — at minimum a lift pump and upgraded transmission tuning, and often a built transmission if you plan to use it regularly.

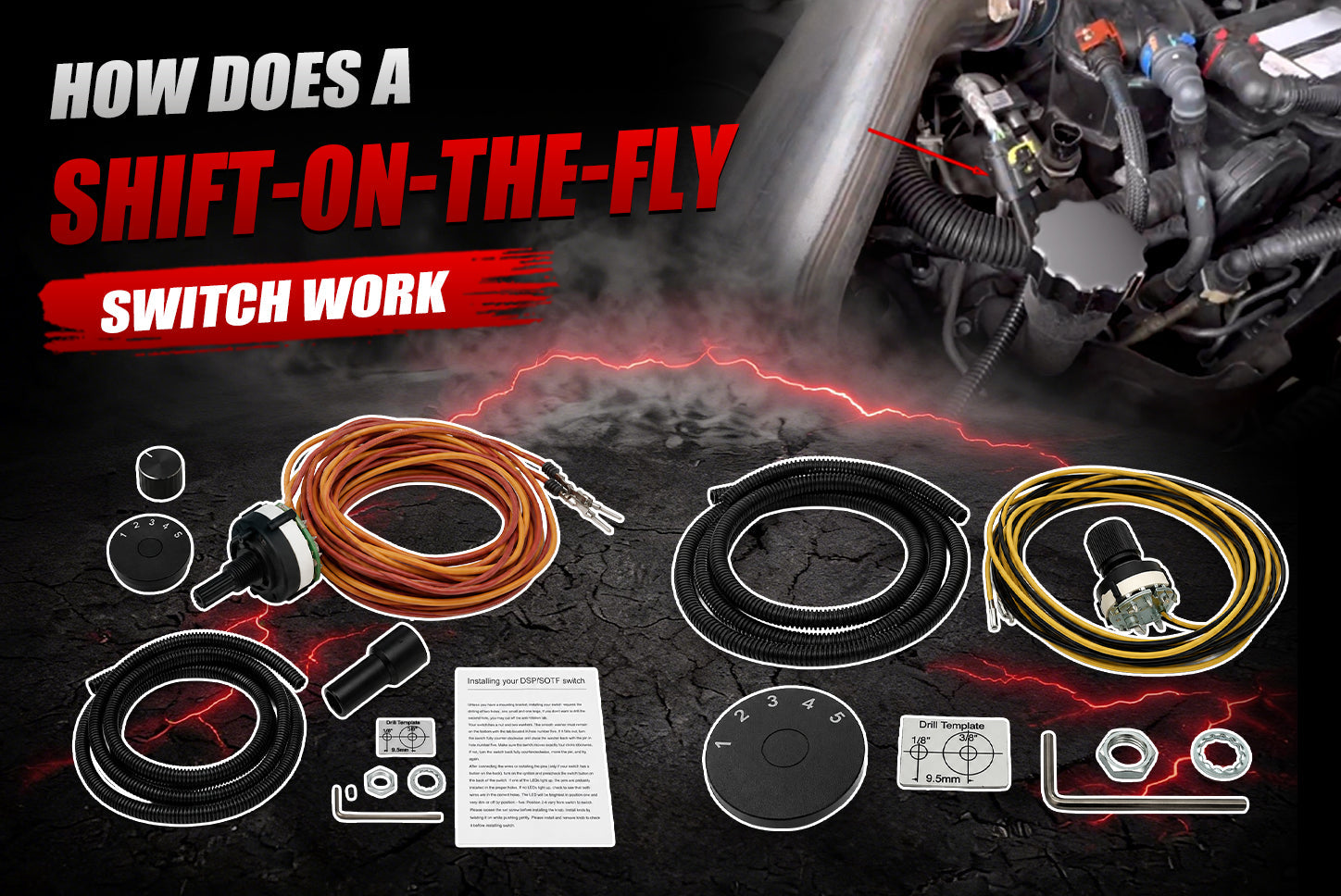

The 2011-2016 Chevy GMC 6.6L Duramax LML 5-Position SOTF Switch comes with a pre-assembled resistor ladder, labeled positions, and a high-temperature conduit to protect the wiring as it crosses the engine bay. There’s a white test button on the back of the switch — turn the ignition to ON, press it, and if an LED lights up, your pins are seated correctly. If you’re working on a 2011 model year truck, there’s one extra step: pin 11 may have an existing factory wire occupying it, and you’ll need to pop that pin out with a pick or paperclip before inserting the yellow wire. 2012-2016 trucks have an empty slot at pin 11 and skip this step entirely.
What Each Position Feels Like Behind the Wheel
There’s no exact horsepower number for each position because the tuner sets the calibrations, but a typical LML SOTF tune spread looks like this:
Position 1 — Stock / Valet. Factory power with no modifications. Use this when you’re handing the keys to a shop, dropping the truck off for service, or driving in heavy traffic where you don’t need the extra fueling. It’s also the position you use if you ever need to flash the truck back to stock for emissions testing or a dealer visit.
Position 2 — Heavy Tow. Adds 40 to 60 horsepower with fueling and timing optimized for sustained load. EGTs stay manageable under trailer weight, and the transmission tuning firms up shift points to reduce clutch slip under load. This is the daily-use position for anyone who tows regularly.
Position 3 — Street. Adds 80 to 120 horsepower with sharper throttle response. The turbo spools noticeably faster, and the truck feels significantly lighter on its feet. EGTs are still safe for extended highway pulls as long as you’re not towing heavy. This is the sweet spot for most owners — enough power to make the truck fun without pushing any limits.
Position 4 — Performance. Adds 130 to 180 horsepower with aggressive fueling and higher boost targets. The turbo is working hard, EGTs rise faster, and the transmission needs upgraded tuning to handle the torque. This position is for clean pulls and fast highway passes — not for towing and not for sustained wide-open throttle.
Position 5 — Hot. The tuner’s max-effort calibration. This adds 200-plus horsepower on a healthy LML with supporting mods, but it demands a lift pump, EGT gauge, and ideally a built transmission. EGTs will climb fast, and this position is for short bursts only — a quarter-mile pull, a dyno run, or proving a point. Running Position 5 continuously without the supporting hardware and transmission work is how you window a block.
One Switch, One ECM, Five Personalities
What makes the SOTF switch uniquely valuable on the LML is the range. A stock LML with a delete tune and a 5-position switch drives like five different trucks. Monday morning commuting in Position 2, merging onto the highway in Position 3, pulling a trailer in Position 2, and Saturday night in Position 4 — all without touching a programmer. The truck adapts to how you’re using it instead of the other way around.
The 2015-2019 6.7L Powerstroke SOTF Switch
The 6.7L Powerstroke is a different animal from the LML. The factory turbo is larger, the common-rail fuel system runs higher pressure, and the ECM logic is more complex. A 5-position switch on a 6.7L Powerstroke delivers the same basic function — five tunes at the turn of a knob — but the install, wiring, and tuning approach are different.
What’s Different About the Powerstroke SOTF Wiring
The 2015-2019 6.7L Powerstroke ECM uses a different architecture from the LML. Instead of tapping directly into ECM pins, the 2015-2019 Ford 6.7L Powerstroke SOTF Switch w/ Connector splices inline with the factory fuel temperature sensor harness on the driver’s side of the engine bay. The included connectors mate directly to the green and green/white wires on the sensor harness — polarity doesn’t matter — and unused connector positions are sealed with the provided plugs. The original fuel temp sensor gets wrapped with tape to prevent corrosion and the switch takes over the signal path. No ECM pinout diagrams, no repinning, no multimeter.
This is a meaningful difference from older Powerstroke SOTF switches that require pinning individual wires into factory connectors. The plug-and-play connector design makes the install substantially cleaner and faster, and it eliminates the risk of a loose pin causing intermittent tune switching while you’re driving.
The 6.7L Powerstroke Tune Spread
On a deleted and tuned 6.7L Powerstroke, the factory turbo and fuel system support a wide power spread, and a 5-position switch takes full advantage of it. A typical tune set for a street-driven 6.7L looks like this:
- Position 1 — Stock power. Factory 440 horsepower and 860 pound-feet. Use for service visits, valet, and emissions-sensitive situations.
- Position 2 — Tow. Adds 50 to 80 horsepower with conservative EGT management and transmission tuning optimized for trailer weight. The 6.7L’s factory turbo can handle sustained towing at this power level without issue.
- Position 3 — Street. Adds 100 to 150 horsepower. The 6.7L wakes up dramatically — throttle response sharpens, boost comes on earlier, and the truck feels 1,000 pounds lighter.
- Position 4 — Performance. Adds 160 to 200 horsepower. The CP4 high-pressure fuel pump is working hard at this level, and a lift pump becomes strongly recommended. EGTs rise faster, and extended wide-open throttle pulls need monitoring.
- Position 5 — Race. The tuner’s ceiling calibration. On a stock turbo, this adds 200 to 250 horsepower, but EGTs will limit how long you can hold it. With an upgraded turbo, the ceiling is higher.
Why Tapping the Fuel Temp Sensor Matters
This is the key design difference between the LML and Powerstroke SOTF switches. The LML connects directly to ECM pins — it’s changing a reference voltage that the computer reads directly. The Powerstroke switch intercepts a sensor signal before it reaches the ECM. The computer doesn’t know a switch is installed; it just sees a fuel temperature sensor reporting a specific voltage that corresponds to a specific tune position in its calibration tables.
Other DieselTok SOTF Switches
The LML Duramax and 2015-2019 Powerstroke switches cover the two most popular SOTF platforms, but there are four more in the DieselTok catalog worth knowing about if you’re on a different truck.
The 2001-2004 LB7 Duramax uses a standalone 5-position switch with its own resistor ladder optimized for the LB7’s ECM pinout. The 2004.5-2005 LLY uses a DSP5 key-lock switch that replaces the factory ignition key cylinder with a combined ignition and SOTF module — a cleaner install than a separate knob, and particularly popular on LLY trucks where dash real estate is tighter. The 2006-2010 LBZ and LMM Duramax share a 5-position switch that works across both platforms. And the 2008-2019 Powerstroke 6.4L and 6.7L platforms share a universal SOTF switch that covers most non-2015-2019 Powerstroke model years.
The 2010-2024 Ram 6.7L Cummins platform uses an EZ-Lynk-integrated SOTF switch that combines CCV ventilation control with shift-on-the-fly tuning — a unique design specific to the EZ Lynk tuning ecosystem on Cummins trucks.
All of these switches follow the same basic principle — a rotary switch, a resistor ladder, and an ECM connection — but the pinout, connector, and resistor values vary by platform. The right switch for your truck depends on three things: your engine platform, your model year, and what tuning software your calibrator uses. Find the full lineup at www.dieseltok.com.
Conclusion
A shift-on-the-fly switch is one of those modifications that sounds like a luxury until you’ve lived with it, then becomes a necessity. The ability to drop from a hot performance tune to a fuel-sipping tow tune without stopping the truck, plugging anything in, or even looking away from the road changes how you use the truck.
On the LML Duramax, the 2011-2016 5-Position SOTF Switch unlocks the full breadth of what EFILive tuning can do on the platform — from stock to 200-plus horsepower over factory, all at the turn of a knob. On the 2015-2019 6.7L Powerstroke, the 2015-2019 SOTF Switch with pre-terminated connector taps the fuel temp sensor harness instead of the ECM, making the install clean without touching the engine computer directly.
Your tuner loads the calibrations. The switch lets you use them.
FAQ
Do I need a tune to use a SOTF switch?
Yes. The switch itself doesn’t contain any tuning — it’s just a resistor selector that tells the ECM which calibration to load. You need a tuner to load multiple calibrations into the ECM first. The switch becomes functional only after the ECM has been tuned with a multi-position file from EFILive, EZ Lynk, HP Tuners, or a compatible tuning platform.
Can I switch tunes while driving?
Yes — that’s the entire point of shift-on-the-fly. You can turn the knob between positions while driving, under load, at any speed. The ECM switches calibration tables instantly. There’s no need to coast, clutch, or back off the throttle, though some tuners recommend lifting briefly during the switch to give the transmission a moment to adapt to the new torque management settings.
Will a SOTF switch work with any tuner?
No. The switch must be compatible with your tuning platform. EFILive uses the DSP5 protocol, which works with a resistor-ladder switch on specific ECM pins. EZ Lynk uses its own CAN-bus-based SOTF protocol. SCT uses a different implementation. Make sure your tuner is building a multi-position file before you install the switch. A single-tune flash file won’t give you anything to switch between.
What happens if the switch fails?
A properly installed SOTF switch is a passive resistor — there’s almost nothing to fail. If a wire comes loose or a connection corrodes, the ECM will default to the position it last read successfully, or in some cases revert to Position 1 (stock). You won’t lose engine function — you’ll just lose the ability to switch tunes until you fix the connection. This is why clean wiring and a solid ground matter.
Can I install a SOTF switch myself?
Yes — if you’re comfortable removing a few dash panels, routing a wire through the firewall, and connecting pins to an ECM connector. The wiring is low-voltage signal wiring, not high-current power wiring, so the stakes are low. The hardest part is usually fishing the wire through the firewall grommet. With a pre-terminated connector, the install takes one to three hours depending on your familiarity with the truck’s interior disassembly.
How many positions can a SOTF switch have?
Five is standard because EFILive’s DSP5 protocol supports five calibrations, and most tuning platforms have adopted the same convention. Some switches have fewer positions (three is common on simpler setups), and some tuning platforms support more calibrations, but the five-position rotary switch is the industry standard across Duramax, Powerstroke, and Cummins platforms.
Does a SOTF switch affect reliability?
The switch itself has no effect on reliability — it’s a passive electrical component. The tunes you load into each position determine the longevity of your drivetrain. However, there is a golden rule to avoid catastrophic failure: never heavy-tow in Position 4 or 5 (Street/Max Effort). The higher positions advance injection timing and maximize injector duration to deliver heavy fuel and high boost. If you attempt to tow a 15,000-pound trailer up a highway grade in a Max Effort tune, your exhaust gas temperatures will skyrocket past 1,500°F within seconds, risking cracked pistons, a blown head gasket, or burnt overdrive clutches in your Allison or TorqShift transmission. Keep it in the designated Tow Tune (Position 2 or 3) when hooked to a load.
Can I use a SOTF switch with a stock truck?
No. The ECM must be tuned to recognize the switch. A stock ECM has one calibration table, not five, and it doesn’t monitor the SOTF input pins for resistance changes. The switch does nothing until a multi-position tune file has been flashed to the ECM.
