The EZ-Lynk AutoAgent is a capable tuner. The problem is not the hardware. The problem is the ritual: slow down, pull out the phone, wait for Bluetooth, open the app, select the tune file, confirm, wait through a 45-second reflash. Every time you want to switch maps. On the highway, this is an annoyance. Towing a 14,000-pound fifth wheel up a mountain grade, watching EGT climb past 1,300°F while waiting for a tow tune to load, it is a genuine problem.
The Shift-On-The-Fly switch eliminates the ritual. Five pre-loaded tunes live on the AutoAgent. A rotary knob in the cab selects between them. Twist the dial from position 1 to position 3, and the ECM switches from the daily economy map to the tow map in under a second — no phone, no reflash, no pulling over. The 2010-2024 Ram Cummins EZ-Lynk CCV SOTF Switch is the hardware that makes the AutoAgent a real-time tuning tool instead of a parking-lot reflashing device.
How the SOTF Switch Works on a 6.7L Cummins
The SOTF switch does not retune the ECM on its own. It is an input device — a five-position rotary switch that tells the EZ-Lynk AutoAgent which tune slot to activate. The AutoAgent stores up to five custom calibrations. The switch selects between them by generating a different resistance value at each dial position.
The integration point on the 2010-2024 Ram 6.7L Cummins is the crankcase ventilation sensor circuit. The CCV sensor is a 5-volt reference circuit that the factory ECM uses to monitor crankcase pressure. The SOTF switch intercepts this circuit at the factory wiring harness — it does not connect to the CCV sensor itself. The factory harness plug is disconnected from the CCV sensor on the valve cover and connected to the SOTF switch instead. The CCV sensor is left idle. The switch presents a different resistance at each of its five positions to the CCV signal wire. The AutoAgent firmware reads the voltage on that circuit and interprets each band as a tune slot selection.
Why the CCV circuit and not a different sensor? The CCV signal on the 6.7L Cummins is electrically quiet — it runs on a dedicated 5-volt reference that is isolated from the high-current injector driver circuits that can induce noise on other sensor lines. Tapping the fuel temperature sensor or the manifold absolute pressure sensor introduces the risk of intermittent signal corruption on circuits that the ECM uses for critical fueling and boost calculations. A noisy MAP signal, for example, can cause the ECM to miscalculate air density and throw a P0069 correlation code under heavy load. The CCV circuit avoids this entirely because the ECM treats CCV voltage as a secondary monitoring input — not a primary control parameter. This signal-isolation characteristic is the reason the CCV circuit, rather than a more accessible sensor line, is the correct integration point for a clean SOTF installation on the 6.7L platform.
Why the 6.7L Cummins Needs SOTF More Than Other Platforms
Three characteristics of the 6.7L Cummins make it the platform that benefits most from real-time tune switching.
The CP4.2 injection pump does not tolerate the wrong tune at the wrong time. The CP4.2 is sensitive to sudden changes in injection volume and rail pressure demand. A race tune that commands aggressive injection timing and peak rail pressure is fine on a dyno pull where the engine is at operating temperature and the fuel has adequate lubricity. Run the same tune on a sustained 7% grade at 11,000 feet of elevation, where atmospheric pressure is roughly 23% lower and the turbo is working harder to make the same boost target, and the combination of high cylinder pressure and reduced combustion efficiency produces EGT spikes that the race map’s fueling strategy was never calibrated to handle. A dedicated tow tune manages injection pulse width and rail pressure ramp rates to keep EGT and CP4.2 load within safe limits. SOTF lets the driver select that tune before the grade begins — not after EGT is already climbing.
Altitude changes the effective tune grade. A stock-plus tune that behaves like a conservative tow map at sea level becomes an aggressive daily tune at 10,000 feet. The engine has less oxygen to work with at altitude. The same fueling command that produces 30 psi of boost at sea level may require the turbo to spin 15% faster to reach 30 psi at elevation, driving up compressor outlet temperature and pushing EGT higher. A driver who runs a tune in position 2 at sea level may need position 3 or 4 at altitude. Without SOTF, that change means pulling over and reflashing. With SOTF, it is a twist of the dial.
The AutoAgent stores up to five tune files for free. Most custom tuners provide a multi-map package as part of a delete or performance calibration. Once the tunes are loaded onto the AutoAgent, switching between them is purely a hardware question. Adding the SOTF switch unlocks the full capability of calibrations already paid for — economy, tow, street performance, high-altitude tow, and a max-effort dyno map all live on the same device, accessible with the same dial.
What Comes in the Box
The kit includes everything required to route the switch through the firewall and mount it in the cab. Note that the wire ends are intentionally left as bare pin terminals and the Deutsch-style connector housing is supplied separately. This is a design feature, not a missing assembly step — the bare pins are thin enough to pass through the factory firewall grommet without cutting or drilling the rubber seal.

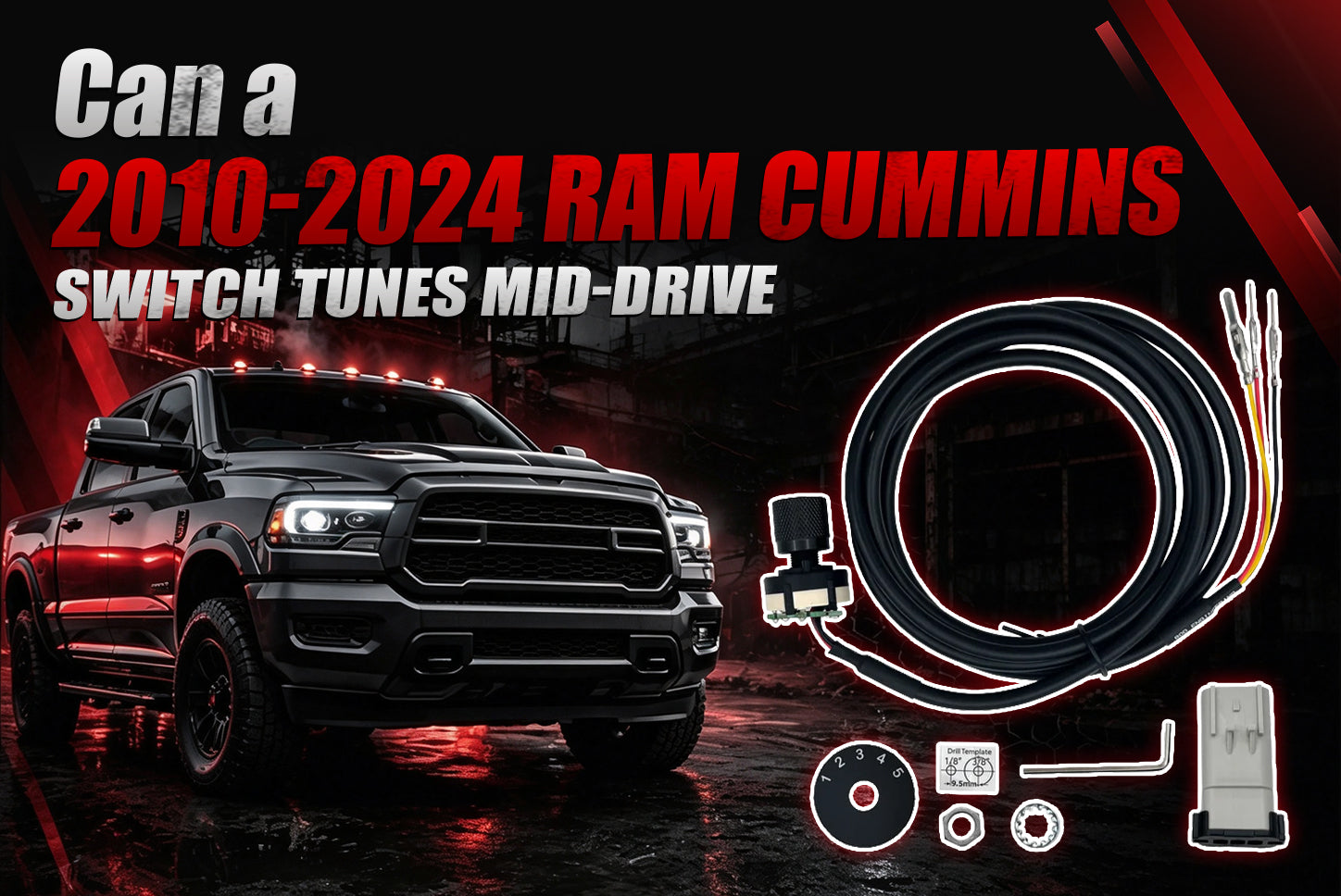

In the box:
- Five-position rotary switch knob with knurled aluminum body and integrated high-gauge cable terminated in bare pin terminals (red, yellow, black)
- Heavy-duty Deutsch-style 3-pin plug housing with blue silicone compression seals and red locking wedge
- Panel mounting hex nut and star lock washer
- Mini Allen key for the knob set screw
- Alcohol prep pad for surface cleaning before decal application
The kit requires no soldering, no heat gun, and no crimping tool. The Deutsch connector pins slide into the housing and lock with an audible click. Once the red wedgelock is seated, the pins are mechanically locked against vibration and the triple blue silicone seals provide an IP68-rated environmental barrier against water, dust, and under-hood chemical exposure.
Tools to have on hand:
- Drill with 3/8-inch bit for the switch mounting hole
- Plastic trim panel removal tool
- Phillips screwdriver
- Flashlight or work light
- Straightened wire coat hanger for routing through the firewall grommet
What Separates a Plug-and-Play SOTF Harness from a Wire-It-Yourself Switch
The SOTF switch market for the 2010-2024 Ram Cummins ranges from budget universal components to tuner-branded kits. The price differences reflect real design decisions that affect installation time, long-term reliability, and tune compatibility.
Plug-and-play versus bare-wire splice. The lowest-cost path to SOTF is a generic rotary switch spliced directly into the CCV sensor wiring — cut the factory harness, strip the insulation, solder or crimp the switch leads in place. The electrical behavior mimics a purpose-built harness, but every added splice in an engine harness is a potential intermittent failure point after thousands of heat cycles. A crimped connector on the CCV circuit that develops corrosion or vibration fatigue creates an open-circuit fault that the ECM interprets as a crankcase pressure sensor failure. The check engine light comes on for a problem that has nothing to do with the engine — it is a connection issue buried inside a taped-up harness. A purpose-built harness with a Deutsch-style connector eliminates the splice entirely. The pins seat with a click and the triple silicone seals prevent moisture ingress without relying on heat-shrink over a crimp.
Connector quality matters more than it looks like it should. The CCV sensor wiring runs along the valve cover, inches from the exhaust manifold heat shield. Under-hood temperatures on a working 6.7L Cummins cycle from ambient to over 200°F every drive cycle. A generic inline connector with a flat O-ring seal can hold up for years on a fair-weather truck. On a truck that sees salt, mud, and winter slush — which describes most Ram 2500 and 3500 trucks in service — water and road spray find their way past a flat seal eventually. When moisture reaches the circuit pins, the corrosion introduces variable resistance. The AutoAgent sees a floating voltage instead of a stable resistance value and may toggle between tune slots unpredictably. The Deutsch-style connector with blue silicone compression seals and a red locking wedge prevents this by matching industrial-grade environmental ratings.
Firewall routing determines the entire install experience. Most SOTF harnesses come with a pre-assembled connector on the engine-bay end. The problem is that a fully assembled 3-pin Deutsch connector body is roughly three times the diameter of the firewall grommet hole. To get it through, the installer must either drill out the grommet — compromising the cabin seal against noise, dust, and water — or cut the factory harness and re-splice. The bare-pin design solves this by allowing the thin wire to pass through the grommet first, with the connector housing assembled on the engine-bay side afterward. This preserves the factory firewall seal and eliminates the drilling or splicing that a pre-assembled harness forces.
Tuner compatibility is not universal. Some SOTF switches are platform-locked: they only work with the tuner brand that sold them. A truck that already has an EZ-Lynk AutoAgent loaded with custom tunes gains nothing from a switch that requires switching to a different tuning portal. The switch should match the tuner already in the truck, not force a platform migration. The DieselTok EZ-Lynk CCV SOTF Switch is built specifically for the AutoAgent platform with no additional tuner lock-in.
Installation
The SOTF switch installation has two phases: running the wire from the cab to the engine bay through the firewall, and connecting to the factory CCV harness.
Cab: Switch Mounting
Select a mounting location for the rotary switch within reach of the right hand without removing it from the steering wheel. Common positions are the lower dash panel to the right of the steering column, the blank switch panel on the center stack, or a custom bracket mounted to the knee bolster.
Drill a 3/8-inch hole at the selected location. Clean the surface with the included alcohol prep pad. Position the adhesive position label around the hole, aligning position 1 at the top or 12 o’clock position. Slide the switch body through the hole from behind the panel. Secure it from behind using the hex nut and star lock washer — tighten until the switch body is firmly clamped against the panel. Use the included mini Allen key to lock the knurled aluminum knob’s set screw against the switch shaft.
Firewall Pass-Through: Cab to Engine Bay
This step is why the SOTF harness arrives with bare pin terminals instead of a pre-assembled connector. The 2010-2024 Ram 2500 and 3500 have a rubber grommet on the driver-side firewall, approximately behind the brake booster. A fully assembled 3-pin Deutsch connector body is too large to pass through this grommet without cutting it. The bare pins — thin enough to slide through the rubber seal without modification — preserve the factory grommet intact.
Push a straightened wire coat hanger through the grommet from the cab side into the engine bay. The exit point in the engine bay is behind the brake booster, above the sound insulation. Tape the three bare pin terminals to the coat hanger in a flat row and pull them through the grommet into the engine bay. The pins should pass through the rubber without resistance. If they catch, re-tape them tighter against the hanger.
Engine Bay: Deutsch Connector Assembly and Harness Connection
On the engine bay side, locate the factory CCV sensor on the driver side of the engine, mounted to the valve cover toward the rear. Disconnect the factory 3-pin wiring harness plug from the CCV sensor. The CCV sensor on the valve cover will remain disconnected — the SOTF switch does not interface with the sensor itself.
Assemble the Deutsch-style connector on the bare pin terminals. Insert the three pins into the grey 3-pin housing in the following order: yellow pin to the left cavity, black pin to the center cavity, red pin to the right cavity. Each pin slides in until it clicks. Once all three pins are seated, press the red locking wedge into place to mechanically lock the pins against vibration. The blue silicone compression seals are pre-installed inside each cavity and seal around the wire insulation when the pin is fully inserted.
Connect the assembled Deutsch plug to the factory wiring harness plug — the connector that was just disconnected from the CCV sensor. The two connectors mate with an audible click. Route the cable along the valve cover toward the firewall, following the factory harness path. Secure with zip ties at three points — near the connector, midway along the valve cover, and at the firewall pass-through — keeping the wire clear of the exhaust manifold heat shield.
Testing
With the switch installed, the AutoAgent connected, and the ignition on, cycle through all five positions. The AutoAgent should display the corresponding tune slot number. Start the engine and confirm no check engine light is present. Switch between positions at idle and confirm the tune transition is seamless. Do not test tune switching under load until the idle and no-load tests are clean.
Total install time is 45 minutes to one hour for a first-time installer. A shop tech familiar with the Ram firewall grommet location can complete the job in 30 minutes.
What SOTF Won’t Do
The switch is a hardware selector. It does not change the laws of thermodynamics or metallurgy.
It does not make a race tune safe for towing. The switch allows selecting the right tune for the job. It does not make the wrong tune safe. Running a max-effort dyno map under sustained load will still melt pistons regardless of how quickly you can switch out of it.
It does not eliminate the need for gauges. The SOTF switch gives the driver the ability to change maps without stopping. The driver still needs to know which map to select and when. A pyrometer and a boost gauge — or the AutoAgent’s live PID display — are the tools that inform that decision. The switch is the actuator, not the sensor.
It does not bypass the tuner platform. The switch only works with an EZ-Lynk AutoAgent loaded with custom tune files. It is not a standalone tuning device. If the AutoAgent is removed or the tunes are wiped, the switch becomes a dial connected to nothing.
Conclusion
The 6.7L Cummins in a 2010-2024 Ram 2500 or 3500 will accept a single tune and run it forever. That is how most tuned trucks operate — one map, all conditions, no adjustment. It works. What it does not do is adapt to the difference between cruising I-80 empty at 75 mph and climbing Wolf Creek Pass with 14,000 pounds on the hitch.
The DieselTok EZ-Lynk CCV SOTF Switch turns the AutoAgent into the tool it was designed to be — a multi-map controller with instant switching. At $56.11, it costs less than the fuel savings from running an economy tune on the highway instead of a tow tune, or the repair bill from running a performance map at altitude instead of a high-altitude tow calibration. It is available at www.dieseltok.com.
FAQ
Does the SOTF switch work with tunes from any tuner, or only EZ-Lynk?
The switch is designed for the EZ-Lynk AutoAgent platform. It uses the CCV sensor circuit input that the AutoAgent firmware reads to determine tune slot selection. Other tuners that accept a CCV-based SOTF input may work, but the switch is validated and supported for EZ-Lynk AutoAgent use.
Can I switch tunes while towing under load?
Yes — that is the purpose of the SOTF switch. The AutoAgent switches between pre-loaded tune files in under one second. The transition is a map selection, not a full ECM reflash. The engine does not cut out or stumble during the switch. The driver should still avoid switching into a high-power tune while under heavy load if that tune is not calibrated for towing conditions.
Will installing the switch void my warranty?
The switch connects to the factory CCV harness without cutting or modifying factory wiring. It is fully reversible — unplug the switch, plug the factory harness back into the CCV sensor, and the circuit is restored to stock. However, the custom tunes loaded on the AutoAgent — which the switch selects between — may be detectable by a dealer scan tool during warranty diagnosis. The switch itself leaves no trace when removed. The tune files do.
What happens if the switch fails while driving?
The switch is a passive resistor network with no active electronics. A failure mode — such as a broken solder joint or a pin backed out of the connector — results in an open circuit on the CCV signal line. The AutoAgent will default to the last selected tune slot and the check engine light may illuminate with a CCV sensor circuit code. The truck will continue to run on the active tune.
Can I install more than five tunes?
The AutoAgent stores up to five tune files. The switch has five positions, one for each file slot. To change which tunes are loaded, connect to the AutoAgent through the EZ-Lynk app and replace the file in the desired slot. The switch positions remain the same.
Does the CCV sensor still function after installing the switch?
No. The factory wiring harness is disconnected from the CCV sensor and connected to the SOTF switch instead. The CCV sensor on the valve cover is idle. The AutoAgent reads the switch’s resistance values on the CCV signal circuit rather than actual crankcase pressure data. This does not affect engine operation — the CCV sensor is a monitoring input, not a control parameter the ECM uses for fueling or timing decisions.
