The 6.4L Powerstroke has a reputation problem, and most of the things people blame — twin turbos, high-pressure fuel pump, head gaskets — are downstream consequences of one root cause that most owners never see. There is sand in your coolant.
When Navistar cast the 6.4L engine blocks, the sand used to form the internal coolant passages wasn’t fully cleaned out before assembly. This isn’t a theory debated on forums. Ford issued TSB 09-08-05 acknowledging that residual casting sand circulates in the cooling system of 2008-2010 Super Duty trucks equipped with the 6.4L diesel. The sand particles, mixed with rust scale from the cast-iron block, circulate through every component cooled by engine coolant — the oil cooler, the EGR coolers, the water pump, the thermostat, the radiator, and the heater core.
The particles are small enough to stay suspended in coolant flow but large enough to lodge in narrow passages — specifically, the stacked-plate passages inside the oil cooler and the tube bundle inside the EGR coolers. Once a passage clogs, flow drops, heat transfer stops, and the component fails. A plugged oil cooler sends oil temperatures past 260 degrees. A plugged EGR cooler ruptures and dumps coolant into the intake. A sand-etched water pump impeller loses efficiency until the truck overheats on a grade.
A coolant filtration system stops this chain reaction before it starts. The 2008-2010 Ford 6.4L Powerstroke Coolant Filtration System & Filter Kit installs a bypass filter in the heater core return line, where it continuously draws a small portion of coolant flow, passes it through a replaceable filter element that captures particles down to roughly 20 microns, and returns clean coolant to the system. Over time, the filter removes the sand and rust that came in the engine from the factory, and it keeps catching whatever the water pump and block casting continue to shed over the life of the engine.
Why the 6.4L Specifically Needs a Coolant Filter
Every engine has some amount of casting debris in the cooling system from manufacturing. The difference with the 6.4L is the volume. The 6.4L block was cast with a more intricate internal cooling jacket than the 6.0L it replaced, using more sand cores in tighter passages. Navistar’s cleaning process after casting — a combination of vibration, compressed air, and high-pressure wash — consistently left behind more sand than it removed. Independent coolant analysis on 6.4L trucks with fewer than 50,000 miles routinely shows silicate levels — a direct indicator of casting sand — several times higher than any other Powerstroke generation.
Ford’s TSB acknowledged the problem but didn’t fix it. The recommended procedure was a chemical flush to dissolve sediment, followed by a coolant replacement. But a chemical flush can’t remove sand that’s packed into the oil cooler or EGR cooler — the flush chemical never reaches passages that are already blocked. And the flush doesn’t stop the remaining sand in the block from continuing to circulate.
A bypass coolant filter addresses the problem mechanically rather than chemically. It doesn’t try to dissolve the sand; it catches it and removes it from circulation.
What the Sand Destroys First
Oil Cooler. The 6.4L oil cooler is a liquid-to-liquid heat exchanger with dozens of narrow stacked-plate passages on the coolant side. These are the smallest coolant passages in the entire system, making them the first to clog with sand. Beyond destroying oil viscosity, there is a darker consequence: the coolant exiting the oil cooler feeds directly into the cooling jackets surrounding cylinders 7 and 8 at the back of the block. When sand restricts this cooler, it starves the rear cylinders of critical heat extraction. This creates massive local hot spots, which is the direct, unvarnished reason why the 6.4L is notorious for cracked pistons and melted rings on the back two cylinders during heavy towing. Replacing a 6.4L oil cooler is a cab-off job that typically costs between $2,500 and $4,000 — if the rear cylinders haven’t already been damaged beyond saving.
EGR Coolers. The 6.4L has two EGR coolers — a horizontal cooler and a vertical cooler, stacked in series. Both use tube-bundle heat exchangers where hot exhaust gas flows through narrow tubes surrounded by engine coolant. When the coolant side of the tubes becomes coated with sand and scale, heat transfer drops, and the tubes overheat. Overheated stainless steel fatigues and cracks. A cracked EGR cooler allows pressurized coolant to enter the intake tract, where it’s drawn into the cylinders. Coolant doesn’t compress — a cylinder that ingests a gulp of coolant can hydrolock and bend a connecting rod. This is not a theoretical failure mode on the 6.4L; it’s one of the most commonly documented catastrophic failures on the platform.
Water Pump. Casting sand suspended in coolant acts as a non-stop abrasive blasting slurry against the water pump impeller. Over tens of thousands of miles, rather than leaking, the factory impeller blades face a silent death. Composite impellers — common on early-production 6.4L pumps — will crack and shatter, sending plastic fragments through the cooling system. Cast-iron impellers, found on later trucks and most OEM replacement pumps, are gradually sandblasted down until the blades are razor-thin, pitted, and completely rounded off. The pump loses its hydraulic efficiency, causing inexplicable under-load temperature spikes while idling completely fine in the driveway. A worn water pump on a 6.4L typically fails silently — no leak, no noise, no warning until the gauge climbs on a grade.
Thermostat and Radiator. Sand and rust particles settle against the thermostat valve seat, preventing full closure and causing the engine to run cold at idle — or lodge in the valve mechanism and prevent it from opening fully under load. Radiator tube clogging is slower to develop but irreversible once it starts; a radiator with sand-packed tubes can’t be flushed clean and must be replaced.
How a Bypass Coolant Filter Works
A coolant filtration system on the 6.4L is a bypass design, not a full-flow design. A full-flow filter would sit in the main coolant circuit and restrict flow to the radiator, which is dangerous at high load. A bypass filter taps into a low-pressure coolant circuit — typically the heater core return line — and filters a small sidestream of coolant continuously. The filtered coolant returns to the system at the same point.
The filter is a spin-on canister similar in size to an oil filter, with a cellulose or synthetic media element rated to capture particles down to approximately 20 microns. At that filtration level, it catches casting sand (which ranges from roughly 30 to 150 microns in the 6.4L), rust scale, and precipitated coolant additives before they can settle into the oil cooler or EGR cooler passages.

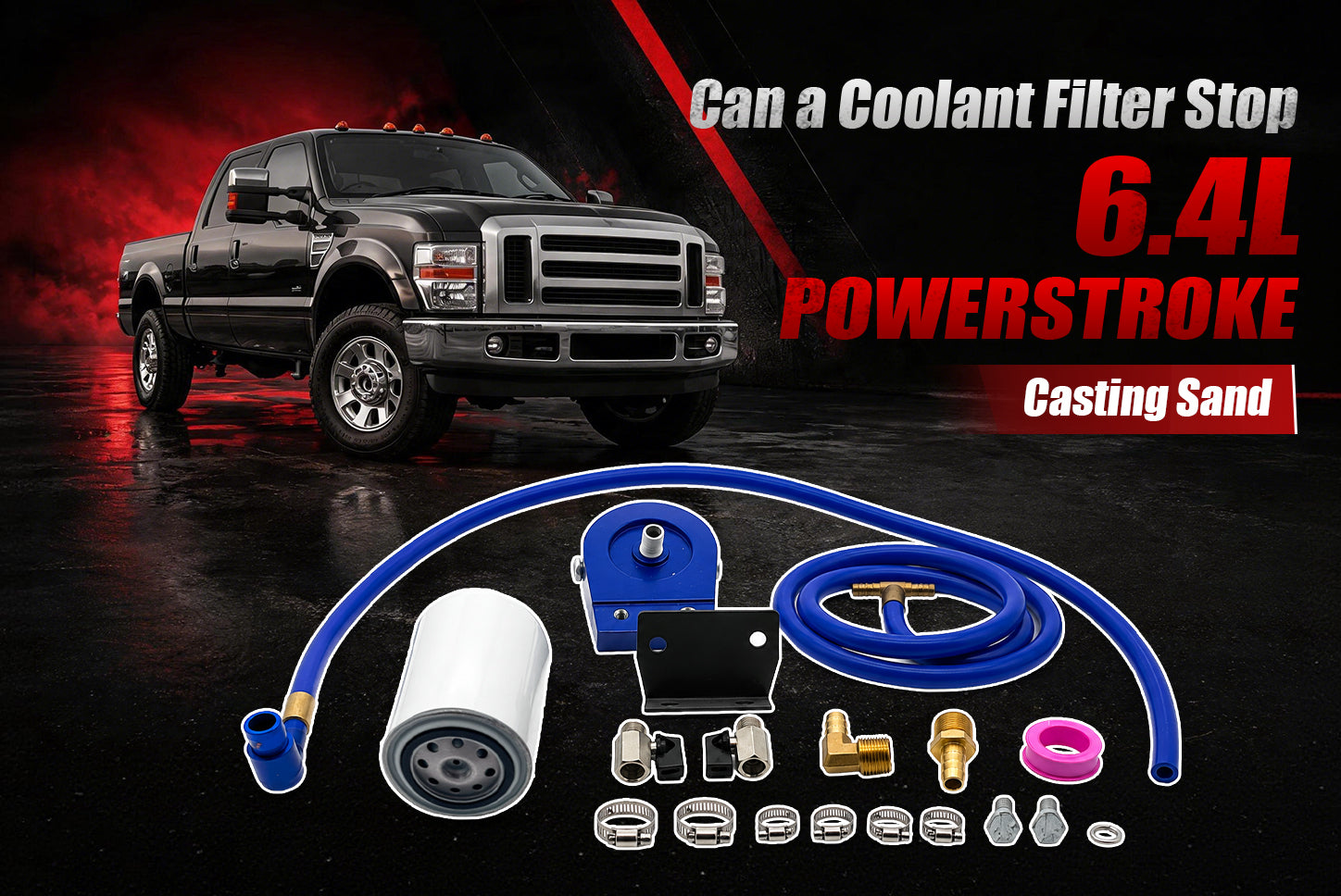

Installation is straightforward. The 2008-2010 Ford 6.4L Coolant Filtration System includes the filter head, mounting bracket, hoses, and fittings to splice into the heater core return line. The bracket bolts to an existing mounting point on the passenger-side frame rail or inner fender, depending on cab configuration. The hoses route from a tee fitting in the heater return line to the filter head and back. No drilling, no cutting of hard lines, and no modification to the main radiator hoses — the entire kit installs in the heater loop, where a leak or restriction can’t starve the engine of coolant.
What to Expect After Installing a Coolant Filter
First filter change: 500 to 1,000 miles. On a 6.4L with more than 50,000 miles that has never had a coolant filter, the first filter element will be heavy with captured debris — dark gray to black silt that feels gritty between your fingers. That’s the casting sand and rust that’s been circulating since the truck left the factory. Cut open the first filter and you’ll understand why the oil cooler and EGR coolers on the 6.4L don’t survive.
Second filter change: 3,000 to 5,000 miles. The second filter will have noticeably less debris than the first. The bulk of the free-floating sand has been captured by the first element.
Ongoing: every other oil change. Once the system has stabilized — typically after the second filter change — the filter element should be replaced every other oil change, or roughly every 10,000 to 15,000 miles, to maintain protection. The ongoing filter catches whatever the water pump, block casting, and coolant breakdown continue to release into the system.
Who Needs a Coolant Filter Most
Any 6.4L still running a factory oil cooler and EGR coolers. If your truck is stock and you plan to keep the emissions equipment intact, the coolant filter is the cheapest insurance you can buy against the two most expensive failures on the platform. A $75 kit and a $15 filter element every other oil change is orders of magnitude cheaper than a cab-off oil cooler replacement or an engine rebuild after a hydrolocked cylinder.
Any 6.4L that’s been tuned and deleted. An EGR delete removes the EGR coolers from the equation, but the oil cooler is still in the loop and still vulnerable. A deleted 6.4L producing more power generates more heat, which means the oil cooler is working harder than it would on a stock truck. The coolant filter protects the oil cooler regardless of what’s downstream.
Any 6.4L that’s already had a coolant flush. A chemical flush loosens sediment but doesn’t guarantee complete removal. Sand packed into corners of the block can break free weeks or months after a flush and start circulating again. A coolant filter catches it when it does.
Any 6.4L that you just bought. If you don’t know the truck’s maintenance history, assume the coolant hasn’t been filtered. The first filter change will tell you exactly what condition the block was in when you bought it.
Conclusion
The 6.4L Powerstroke is an engine that demands respect for its cooling system in a way that no other Powerstroke generation does. The casting sand that Navistar left behind doesn’t self-destruct, doesn’t dissolve, and doesn’t stop circulating until something catches it. Without a coolant filter, that something is your oil cooler, your EGR coolers, or your water pump — each a multi-thousand-dollar repair. With a filter, the sand comes out when you spin off the canister.
The 2008-2010 6.4L Powerstroke Coolant Filtration System & Filter Kit is a one-time install that pays for itself the first time it prevents one of those failures. On an engine platform where cooling system failures are the rule rather than the exception, filtering the coolant isn’t an upgrade — it’s a correction of something the factory should have done before the truck left the assembly line.
FAQ
Will a coolant filter fix an already-clogged oil cooler?
No. A coolant filter is preventive, not corrective. If the oil cooler is already restricted and oil temperatures are running high, the cooler needs to be replaced. The filter prevents sand from clogging the replacement cooler the same way it clogged the original one.
Does the coolant filter restrict flow through the heater core?
No. The filter is plumbed on a bypass circuit — it draws a small percentage of total heater core flow, passes it through the filter, and returns it to the same circuit. The main coolant path through the heater core is unaffected. The heater will perform exactly as it did before the install.
How often do I change the filter?
The first filter: 500 to 1,000 miles after install. The second: 3,000 to 5,000 miles. After the system has stabilized — you’ll know because the second filter will have dramatically less debris than the first — change the filter every other oil change or approximately every 10,000 to 15,000 miles.
Will the filter catch all the sand in the system?
Not instantly, but yes — over time. A bypass filter only processes a fraction of total coolant flow at any given moment, so it takes several hundred miles to filter the entire system volume. That’s why the first filter change happens so early — you want to remove the captured debris before the filter element reaches capacity and stops filtering effectively.
Do I need to drain the coolant to install the filter?
The coolant level will drop slightly when you cut into the heater core return line, but a full drain is not required. The kit installs in a low-pressure circuit, and the amount of coolant lost during installation is usually less than a quart. Top off the degas bottle afterward and you’re done.
Does this fit all 2008-2010 Super Duty trucks?
Yes. the 6.4L Coolant Filtration System fits F-250, F-350, F-450, and F-550 with the 6.4L Powerstroke diesel regardless of cab configuration.
Will a coolant filter help on a 6.0L or 6.7L Powerstroke?
The 6.4L has the worst casting sand problem of any Powerstroke generation, which is why this kit is engine-specific. The 6.0L and 6.7L benefit from coolant filtration as well — any diesel with an oil cooler and EGR cooler is safer with filtered coolant — but the 6.4L is the one platform where a coolant filter transitions from “nice to have” to “why didn’t the factory install one.”
Can I reuse the filter bracket if I sell the truck?
The filter head and bracket can be removed, but once the hoses are cut into the heater core circuit, the truck will need a coupling or a section of replacement hose to return to stock. Most owners leave the system installed when they sell — it’s a selling point, not a liability.
