Most boost leaks on a diesel truck announce themselves. A blown intercooler boot leaves you with a cloud of black smoke and a sound like a punctured balloon. A split CAC tube pops a P0299 underboost code. Even a loose clamp leaves evidence you can find with a flashlight and a bottle of soapy water.
Up-pipe leaks are different. They happen before the turbo, on the hot side of the exhaust system where every molecule of gas is at its highest temperature and pressure. They don’t throw a code because there’s no sensor between the exhaust manifolds and the turbo inlet. They don’t make an obvious noise at idle because the leak only opens up under load when the pipes expand. And they don’t leave the kind of evidence you’d notice during a casual walkaround — not unless you know exactly where to look.
The 6.4L Powerstroke is especially vulnerable to up-pipe failure. The compound twin-turbo setup — an atmospheric turbo feeding a high-pressure turbo in sequence — generates more exhaust heat and more thermal cycling than any single-turbo diesel. The factory up-pipes use thin stamped stainless steel bellows that fatigue-crack after years of expanding and contracting. When they crack, your turbo stops seeing the exhaust energy it needs to make boost.

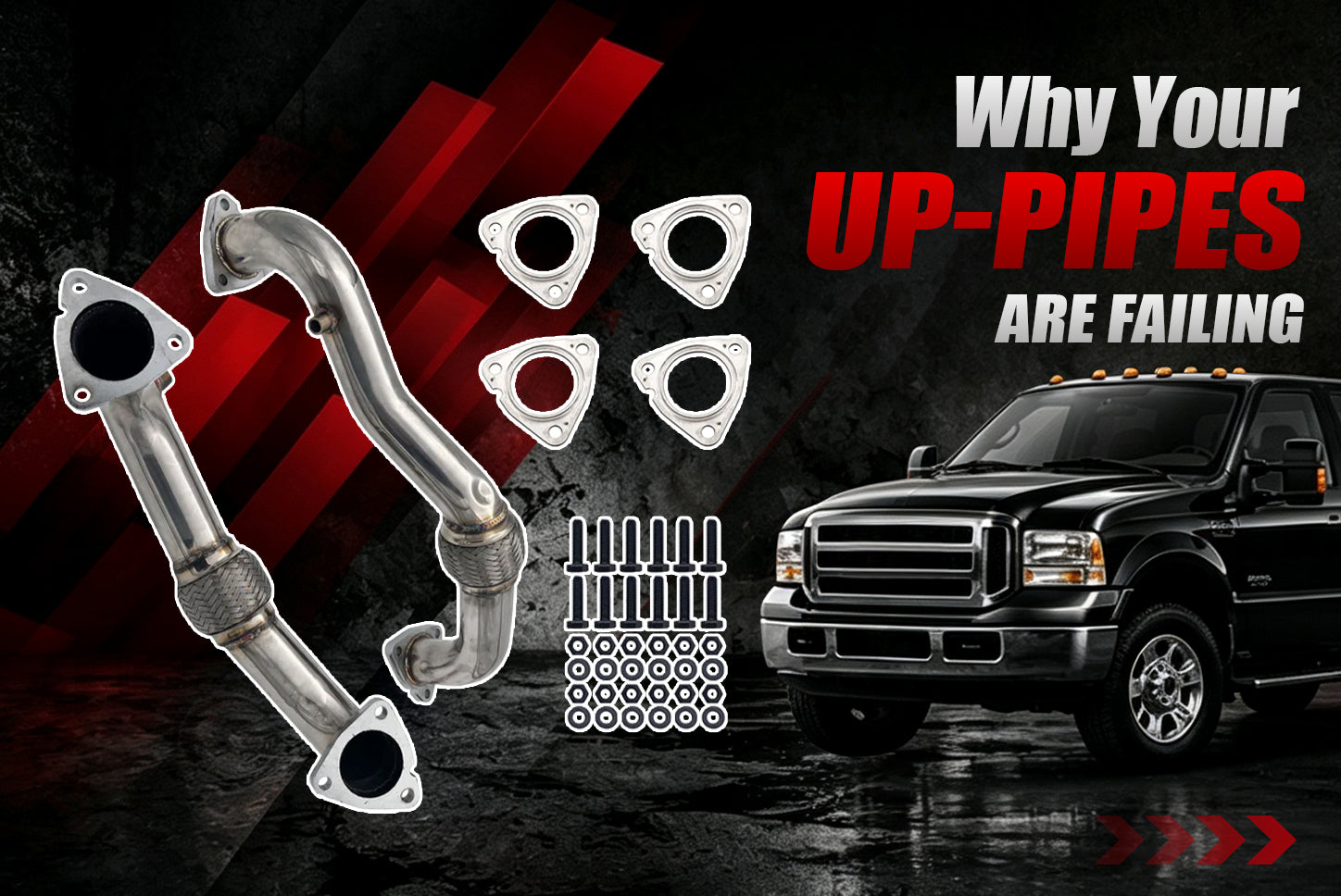

The 2008-2010 Ford 6.4L Powerstroke Heavy Duty Turbo Exhaust Up-Pipe Kit replaces the fragile factory bellows with heavy-duty interlocking braided mesh bellows and upgraded corrugated flex joints designed to absorb the same thermal cycling without cracking. Same function, radically better durability.
What an Up-Pipe Actually Does
The up-pipe is the section of exhaust plumbing that connects the exhaust manifolds to the turbocharger. On the 6.4L’s compound twin-turbo system, these pipes route exhaust from the manifolds into the high-pressure turbo, and then on to the atmospheric turbo. Every molecule of exhaust gas that drives either turbo passes through an up-pipe first.
This means the up-pipes carry exhaust at its absolute hottest and at its highest pressure. Pre-turbo exhaust temperatures on a 6.4L under load routinely exceed 1,200 degrees Fahrenheit — hotter than anything downstream of the turbo, because the turbo extracts energy from the gas as it expands. The pipes are subjected to that heat, then cooled to ambient every time you shut the truck off. Over years and tens of thousands of cycles, the expansion and contraction work-hardens the metal at the bellows until microscopic cracks propagate into visible splits.
Once a crack opens, the pipe leaks exhaust before it reaches the turbo. This is a pre-turbo exhaust leak: it bleeds off the very gas the turbo needs to spin. Less exhaust energy at the turbine wheel means slower spool, lower peak boost, and higher exhaust gas temperatures because the engine is working harder to move the truck on less boost.
Why the Factory Bellows Fail on the 6.4L
The factory up-pipe bellows are thin stamped stainless steel convolutions — flexible enough to absorb thermal expansion, but thin enough to fatigue-crack after several years of heat cycling. Three things make the 6.4L especially hard on them.
Compound turbo heat load. A single-turbo diesel runs one turbine. The 6.4L’s sequential twin-turbo setup means the high-pressure turbo — the smaller one that spools first — sits directly downstream of the up-pipes, and it runs at a higher turbine inlet pressure than any single-turbo diesel. More pressure pulses hammering the bellows with every exhaust stroke of every cylinder, eight times per revolution.
Tighter packaging. The 6.4L’s engine bay is famously cramped. Ford stuffed two turbos, two EGR coolers, and the associated plumbing into a space designed for a single-turbo layout. The up-pipes make tighter bends with less room to flex, concentrating thermal stress at fewer points instead of distributing it along the length of the pipe.
Material fatigue. Stamped stainless steel bellows are manufactured by pressing thin sheet metal into a corrugated shape. The forming process introduces microscopic stress concentrations at each convolution peak and valley. Add a thousand heat cycles from ambient to 1,200 degrees and back, and those stress concentrations propagate into cracks — typically on the underside of the bellows, facing the block, where you can’t see them without a mirror or a borescope.
How to Spot a Leaking Up-Pipe Before It Costs You a Turbo
Because there’s no sensor between the exhaust manifold and the turbo, the ECM has no way to detect an up-pipe leak. You won’t get a check engine light. You won’t get a pending code. The truck will run worse and worse and never tell you why.
Here’s what a leaking up-pipe actually feels like from the driver’s seat:
Boost lag that gets worse over time. The turbo spools later and hits lower peak numbers than it used to. This is gradual — you might not notice it week to week — but if you’ve owned the truck for a while and it doesn’t pull as hard at 2,000 RPM as it did two years ago, an up-pipe leak is on the short list of suspects.
Rising EGTs at cruise. Because the engine is working harder to maintain speed on less boost, exhaust gas temperatures climb. A truck that used to cruise at 800 degrees at 70 miles per hour might show 900 or 950. Under load, EGTs that used to peak at 1,200 might now touch 1,350 before you back out of the throttle.
A whistling or chirping sound under acceleration. Pre-turbo exhaust leaks make a distinctive noise — higher-pitched than a post-turbo leak, almost a metallic chirp, because the gas is at higher pressure and escapes through a smaller opening. It’s most noticeable at moderate throttle when the engine is building boost, less noticeable at wide-open throttle when the engine noise drowns it out.
Soot streaks around the bellows. This is the definitive physical evidence. Cracked up-pipe bellows leak soot-laden exhaust, and that soot deposits on the surrounding surfaces. Look for black streaks radiating outward from the bellows convolutions, especially on the underside where gravity pulls the soot. If you see soot on a bellows, it’s leaking — even if the truck doesn’t feel slow yet.
The Fix: Upgraded Bellows That Handle the Heat
The 2008-2010 Ford 6.4L Powerstroke Heavy Duty Turbo Exhaust Up-Pipe Kit addresses the failure point without eliminating the function. Instead of thin stamped stainless convolutions, the kit uses heavy-duty interlocking braided mesh bellows — a design borrowed from industrial exhaust applications where pipes must flex under extreme heat without leaking. The braided mesh distributes thermal stress across interlocking strands rather than concentrating it at pressed fold lines. Underneath the mesh, upgraded corrugated flex joints provide the expansion absorption that keeps the pipe from cracking at the flanges.
The advantage of keeping bellows in the design is real. A diesel exhaust system that runs from ambient to 1,200 degrees and back twice a day needs somewhere to give. Solid pipe transfers all of that stress to the flanges and gaskets — which then leak instead. The braided mesh bellows design flexes enough to absorb thermal expansion without flexing so much that the material fatigues. Same job the factory bellows were supposed to do, done with a material and construction that actually holds up.
The flanges at both ends are precision CNC-machined for exact bolt-hole alignment with the factory manifold and turbo inlet, so the kit bolts directly in without adapters or modifications.
Installation: What You’re Getting Into
Up-pipe replacement on a 6.4L is not a quick job. The pipes run tight between the engine block and the firewall, and the turbochargers sit directly above them. Access is the enemy.
On a 6.4L with the cab on, the up-pipe bolts are accessed from underneath with a long extension and a swivel socket. The turbochargers stay in place — the up-pipe kit unbolts from the exhaust manifold flange at the bottom and the turbo inlet flange at the top without removing either turbo. Some owners remove the passenger-side inner fender liner for better access to the lower bolts.
Plan for three to five hours on jack stands if you’ve done exhaust work before and the bolts cooperate. Add penetrating oil the night before — the manifold flange bolts have been heat-cycled thousands of times and can be stubborn. If a bolt snaps, a bolt extractor and some patience will pull it, but a snapped bolt adds at least an hour.
If the truck is already getting a cab-off repair for oil cooler, EGR cooler, or head gasket work — and 6.4Ls eventually need one of those — replacing the up-pipes while the cab is off is a no-brainer. The access with the cab removed transforms a three-hour fight into a 30-minute bolt-on.
Conclusion
Leaking up-pipes are one of the most-overlooked causes of power loss on the 6.4L platform because they fail silently — no code, no smoke trail, no obvious symptoms at idle. The consequence is a truck that slowly loses performance over months or years while the owner assumes it’s “just getting old.” It’s not getting old. It’s losing exhaust energy before it reaches the turbo.
The 2008-2010 6.4L Powerstroke Heavy Duty Turbo Exhaust Up-Pipe Kit replaces the stamped steel bellows that crack with braided mesh flex joints that don’t, restoring the full exhaust pulse that the compound turbo system needs to spool and hold boost. If your 6.4L doesn’t pull the way it used to and there’s soot on the bellows, the up-pipes are the problem — and a $125 bolt-on swap is the answer.
FAQ
1.Will an up-pipe leak trigger a check engine light?
No. There is no exhaust pressure sensor, oxygen sensor, or any other monitoring device between the exhaust manifolds and the turbocharger inlet on the 6.4L. The ECM has no way to detect that exhaust gas is escaping before it reaches the turbine. The truck will lose performance and never illuminate the CEL.
2.How do I confirm an up-pipe leak without taking anything apart?
Look for soot streaks radiating from the bellows. A flashlight and an inspection mirror are enough — the soot is dark gray to black and leaves visible streaks against the pipe and the surrounding block. If you see soot on a bellows, it’s leaking. For confirmation, have someone hold the truck at 1,500 RPM in park while you feel around the bellows with a bare hand. A pre-turbo exhaust leak is hot, high-pressure gas — you’ll feel the pulse of each exhaust stroke.
3.Can I weld the factory bellows instead of replacing the pipe?
You can, but it’s a temporary fix. The bellows cracked because the thin stamped metal work-hardened from years of thermal cycling. Welding the crack adds material to the thinnest, most fatigued section of the pipe. The repair will hold for a while and then crack again next to the weld, because the underlying cause — thermal expansion cycling through a thin stamped convolution — hasn’t been addressed. Replacing the pipe with a braided mesh flex joint design eliminates the failure mechanism.
4.Is this the same as a downpipe?
No. The downpipe connects to the turbocharger outlet and carries post-turbo exhaust toward the DPF and the rest of the exhaust system. The up-pipe connects to the turbocharger inlet and delivers pre-turbo exhaust from the manifolds. The downpipe is downstream of the turbo; the up-pipe is upstream. A leaking downpipe makes noise. A leaking up-pipe costs boost.
5.Will this fit my 2008-2010 F-250, F-350, F-450, or F-550?
Yes. The 2008-2010 6.4L Powerstroke Heavy Duty Turbo Exhaust Up-Pipe Kit fits all 2008-2010 Super Duty trucks with the 6.4L Powerstroke diesel, regardless of cab configuration or bed length.
6.Does replacing up-pipes require removing the turbo?
In most cases, no. The up-pipe unbolts from the exhaust manifold flange at the bottom and the turbo inlet flange at the top. Both turbos can stay in place. Access is tight — especially on a truck with the cab on — but the fasteners are reachable from underneath with a long extension and a swivel socket.
