The factory valve cover on the 5.9L and 6.7L Cummins is what the engineers designed it to be: a stamped metal lid that keeps oil inside the cylinder head and dirt out. It does that job. What it does not do is manage crankcase pressure, separate oil vapor from the breather stream, or do anything at all other than sit there and seal.
This is not a criticism of the factory part. It is a description of its design intent. The valve cover was never asked to do more than seal. The problem is that on a high-mileage, hard-working Cummins — towing heavy, running sustained highway RPMs, pushing boost through a worn rotating assembly — the engine starts asking for more than a lid.

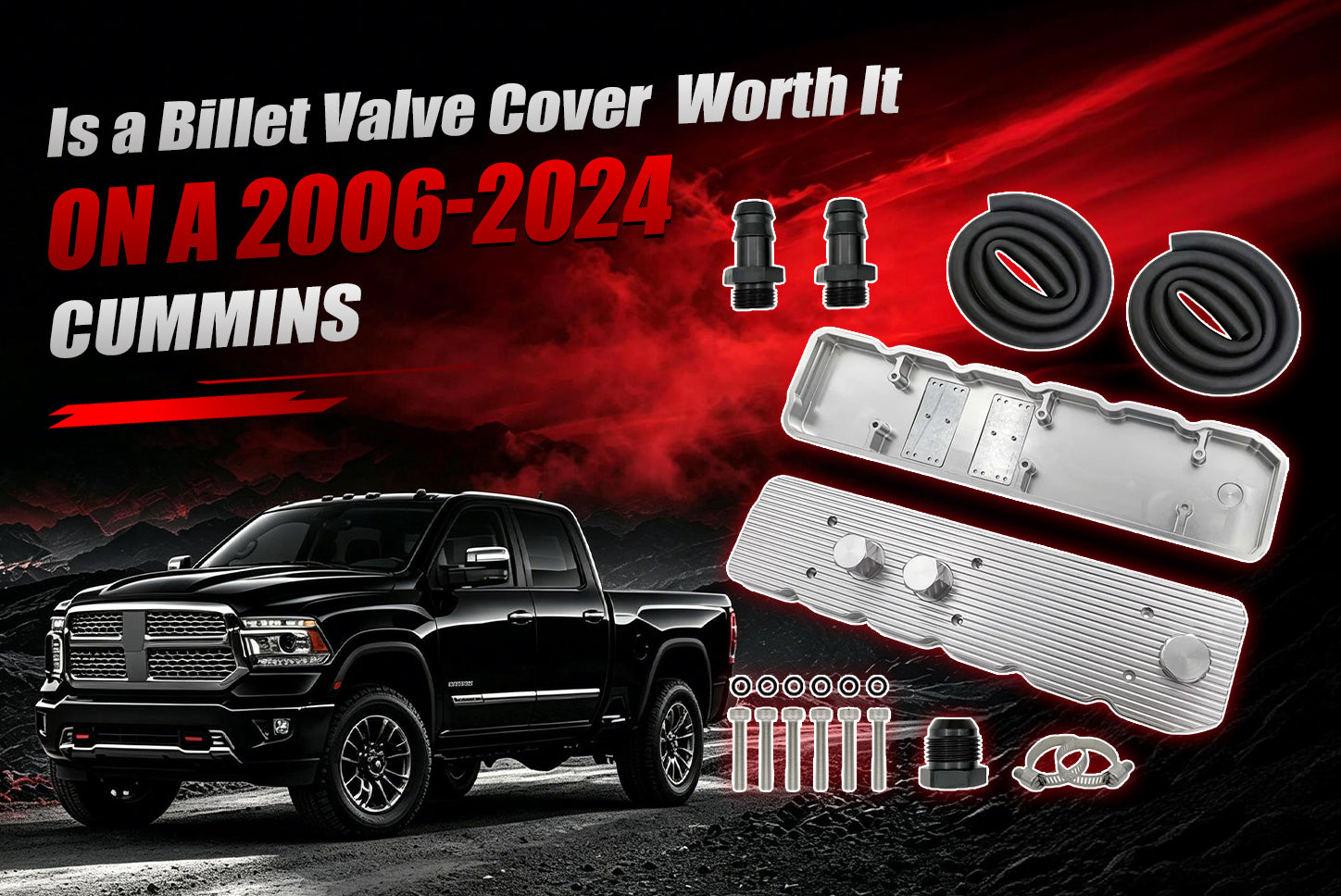

A CNC billet aluminum valve cover is not a dress-up part dressed up as an upgrade. The 2006-2024 Ram 5.9L 6.7L Cummins CNC Billet Valve Cover has a removable baffle system and a filtration cavity that the factory cover never offered. Whether that matters depends on what the engine is doing to its own intake when you are not looking.
What the Factory Valve Cover Does Not Do
The 5.9L and 6.7L Cummins engines use a closed crankcase ventilation system. Blow-by — combustion gas that leaks past the piston rings into the crankcase — pressurizes the space under the valve cover. That pressure has to go somewhere. The factory solution routes it out through a breather port, through a hose, and into the intake tract upstream of the turbocharger.
The factory breather port is a hole. It is not a separator. The crankcase vapor exiting that port carries atomized oil droplets, combustion byproducts, and whatever moisture has condensed in the crankcase. All of it goes directly into the turbo inlet.
Over 150,000 miles, the result is predictable: the intercooler accumulates an oil puddle in the bottom tank, the intake manifold grows a layer of baked-on carbon, and the turbo compressor wheel develops a coating of oil residue that imbalances it and reduces compressor efficiency. The factory valve cover was never asked to prevent this, and it does not.
The Billet Cover’s Actual Job
The CNC billet valve cover replaces the factory lid with a component machined from solid aluminum that includes an internal baffle chamber. The baffle is not just a metal plate with a few holes — it is a removable tray that can be packed with filtration media designed to catch oil droplets before the vapor reaches the breather outlet.
Here is how the separation works: crankcase vapor enters the cavity under the valve cover. Before it reaches the breather outlet, it passes through the filtration media in the removable baffle. Oil droplets impact the media fibers, coalesce into larger droplets, and drain back into the cylinder head. The gas that exits is cleaner — not oil-free, but stripped of the heavy droplet load that the factory system sends straight into the intake.
At elevated RPM, the effect compounds. A factory cover on an engine running 2,200 RPM under load with elevated blow-by will push a visible oil mist through the breather. The billet cover with filtration media catches enough of that mist that the breather stream is substantially drier.
Crankcase Pressure: The Silent Seal Killer
The second function of the billet cover is pressure management, and it is the one fewer owners think about. The factory valve cover has a fixed internal volume. When blow-by pressurizes the crankcase — and it will, on any diesel with miles on the rings — the pressure has one escape path: the breather port. If that port or the hose connected to it is undersized, partially clogged, or routed through a factory CCV filter that has never been changed, crankcase pressure rises.
Elevated crankcase pressure does not announce itself with a check engine light. It pushes on seals — the front main, the rear main, the valve cover gasket itself — and eventually one of them lets go. The rear main seal on a 6.7L Cummins is a transmission-out job. A $20 seal becomes a $1,500 repair because the crankcase was pressurized for 50,000 miles and nobody knew.
The billet cover’s baffle chamber adds internal volume to the valve cover cavity, lowering the peak pressure spike under blow-by conditions. It is not a fix for worn rings — nothing is — but it buys margin for an engine that is running more blow-by than it did at 50,000 miles and does not have a rebuild in the immediate budget.
Is It Just a Dress-Up Part?
The billet valve cover is the part that gets called a dress-up upgrade by people who have never held one, and the part that gets installed by people who have had an intercooler off and seen what a factory breather does to the inside of their intake.
The visual difference is real — a CNC-machined aluminum cover with clean tool paths looks like a fabrication shop built it, because one did. But the internal architecture is what separates it from a $100 cast aluminum cover on a marketplace listing. The removable baffle tray, the filtration media cavity, and the increased internal volume are engineered features that the factory part and the budget aftermarket alternatives do not include.
The easiest way to tell the difference between a dress-up part and a functional upgrade: pull the breather hose off at 50,000 miles and check how much oil is in it. Then do it again 5,000 miles after installing the billet cover with filtration media.
Who Should Actually Buy One
A valve cover upgrade will not make a noticeable difference on a low-mileage truck that spends its life unloaded and never sees sustained boost. The factory cover is adequate for an engine with tight rings and low blow-by.
The math changes for a truck working hard. A 6.7L Cummins towing 14,000 pounds at 70 miles per hour in the mountains is running 1,800 to 2,200 RPM at high load, cylinder pressure is elevated, blow-by is at its maximum, and crankcase vapor is moving through the breather system at the highest rate the engine will ever produce. That is the operating condition where a baffled valve cover with filtration media earns its price.
The same applies to trucks approaching or past 200,000 miles that are running on original rings. Blow-by is higher than it was at 50,000 miles. The factory breather was designed for the lower blow-by level. The billet cover with filtration media compensates for the increased oil vapor volume without the expense of bottom-end work the truck might not need yet.
Installation
The job takes place entirely on top of the engine. The valve cover is accessible with the engine cover removed — it sits on top of the cylinder head, held down by perimeter bolts that thread into the head casting.
Remove the breather hose and any wiring harness clips attached to the factory cover. Remove the perimeter bolts. Lift the factory cover off — the gasket may stick to the head, so expect to scrape it if the cover has not been off before. Clean the cylinder head mating surface thoroughly. Lay the new gasket in place. Position the billet cover, start all bolts finger-tight, then torque to specification in a cross pattern.
The sequence matters. A billet aluminum cover is rigid — more rigid than the stamped steel factory part — and it will not conform to a sloppy bolt-up the way a flexible steel cover will. A proper cross-pattern torque sequence lands the cover flat and even on the gasket, which is what prevents leaks.
One detail worth the extra ten seconds during install: inspect the factory valve cover gasket before reusing it. On the 5.9L and 6.7L Cummins, the valve cover gasket is not a simple rubber perimeter seal — it is an integrated pass-through harness that carries the injector circuit wiring through the cover to the external engine harness. The gasket has molded plastic connectors embedded in it where the wiring crosses the sealing surface. If those plastic pass-throughs are brittle, cracked, or saturated with oil from age, reuse them and the truck may start throwing injector circuit DTCs six months later — intermittent open-circuit codes that are a diagnostic headache because they mimic a wiring or injector failure. A new OE gasket and integrated harness is a fraction of the labor of doing the valve cover job twice.
Budget two hours with basic hand tools and a torque wrench. No special tools, no draining fluids, no removing anything below the valve cover level.
Conclusion
The factory valve cover on the 5.9L and 6.7L Cummins is a lid. It seals. That is all it was designed to do, and it does it for hundreds of thousands of miles on trucks that never ask for more.
A truck that asks for more — towing heavy, running high RPM under load, running elevated blow-by from rings with 200,000 miles on them — is pushing oil vapor through the breather system that the factory lid was never designed to handle. The 2006-2024 Ram 5.9L 6.7L Cummins CNC Billet Valve Cover is a $279 aluminum cover that adds oil separation and pressure management that the factory part lacks. It is not a fix for worn rings. It is a fix for what worn rings do to a breather system that was designed for an engine with 50,000 miles on it.
FAQ
Does the billet valve cover eliminate oil in the intercooler?
It reduces it substantially — but it does not eliminate it on an engine with heavy blow-by. The filtration media catches the atomized droplets that the factory breather lets through. Any oil vapor that condenses after passing through the baffle will still reach the intercooler, but the volume is a fraction of what the factory breather delivers.
Do I need a tune after installing the billet valve cover?
No. The valve cover is a mechanical component with no sensors, no actuators, and no electrical connection. The ECM does not know it has been changed.
Does it fit with aftermarket intake manifolds and grid heater deletes?
The valve cover occupies the top of the cylinder head and bolts to the same mounting surface as the factory cover. Most aftermarket intake manifolds and grid heater delete kits mount to the side of the head and do not interfere with the valve cover. The breather port placement should be verified against any custom intake plumbing, but the port position is similar to the factory location.
Can I run it without the filtration media?
Yes, but you lose the oil separation function. The baffle cavity is designed to hold media. Running it empty reduces the cover to a billet lid — it will still seal and still add internal volume for pressure management, but it will not catch oil droplets from the breather stream.
What kind of filtration media does it take?
The removable baffle tray accepts generic filtration media — stainless steel mesh, copper wool, or commercially available crankcase breather filter elements. Media should be cleaned or replaced periodically based on how much oil it is catching. A truck running heavy blow-by will load the media faster than a low-mileage engine.
Is this worth buying if I already have a CCV reroute?
Yes, and the two work together. A CCV reroute sends the breather outlet to atmosphere instead of the intake, but it does not stop oil from leaving the valve cover in the first place. The billet cover’s baffle reduces the oil volume exiting the breather, which means less oil dripping from the reroute hose, less mess on the frame rail, and less oil consumption. The cover manages the problem at the source. The reroute manages the destination.
